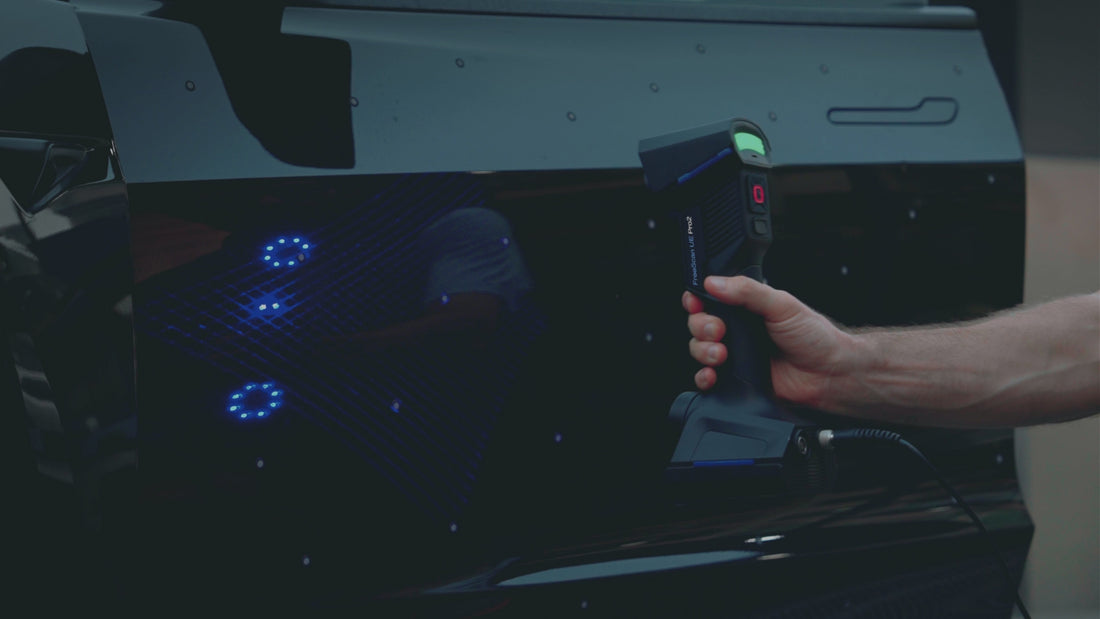

Wireless & High-Precision Laser 3D Scanner

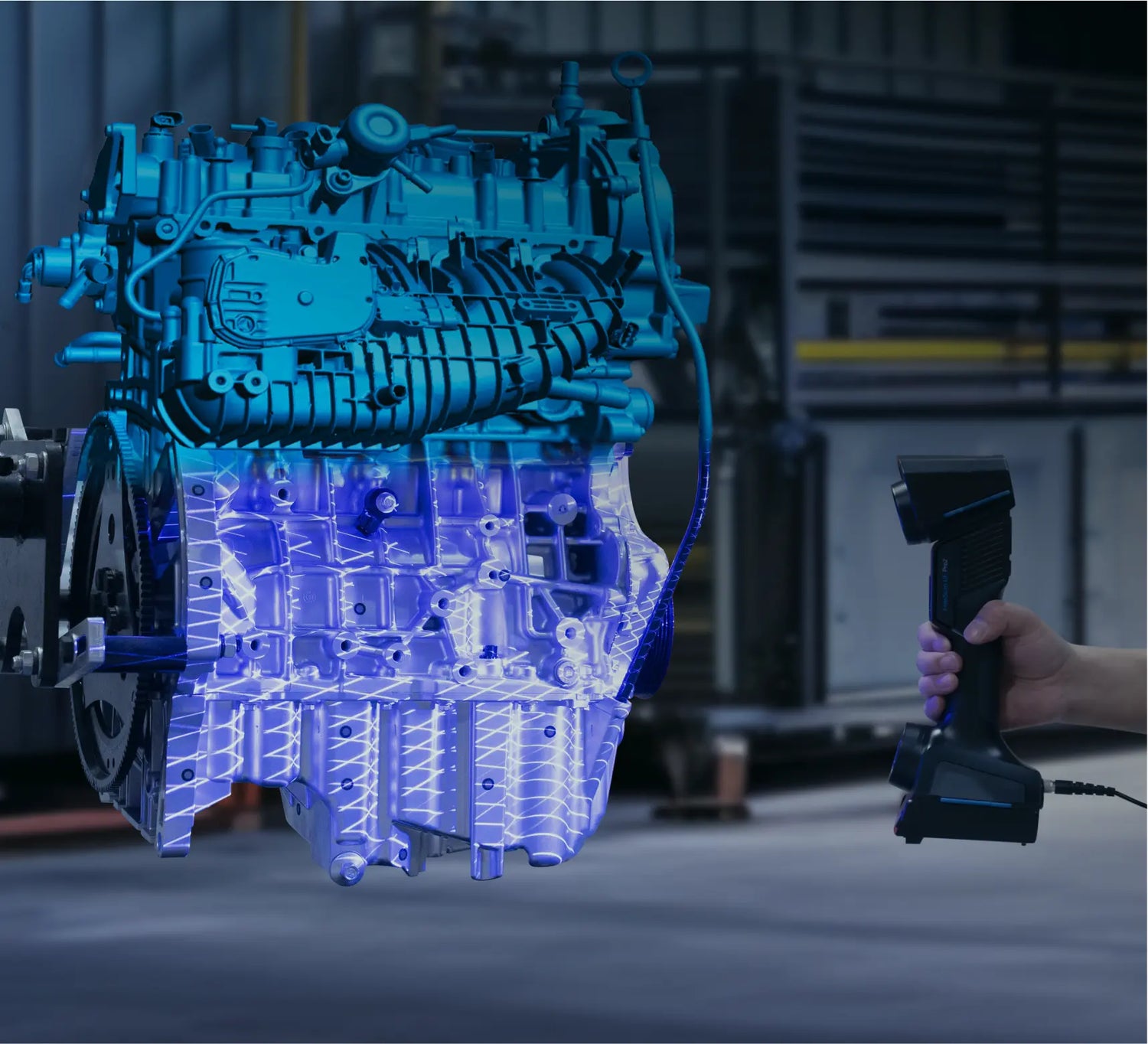

Double the Speed, Double the Productivity
With a scan speed up to 3,460,000 points/s, tasks are completed smoothly, enhancing productivity in inspection applications.
- Embedded Computing Module: Accelerates data capture and processing, reducing overall scanning time and computer workload.
- 50 Laser Lines: Ensures faster and more comprehensive scanning.
- High Frame Rate: Achieves up to 180fps for smooth and rapid data acquisition.

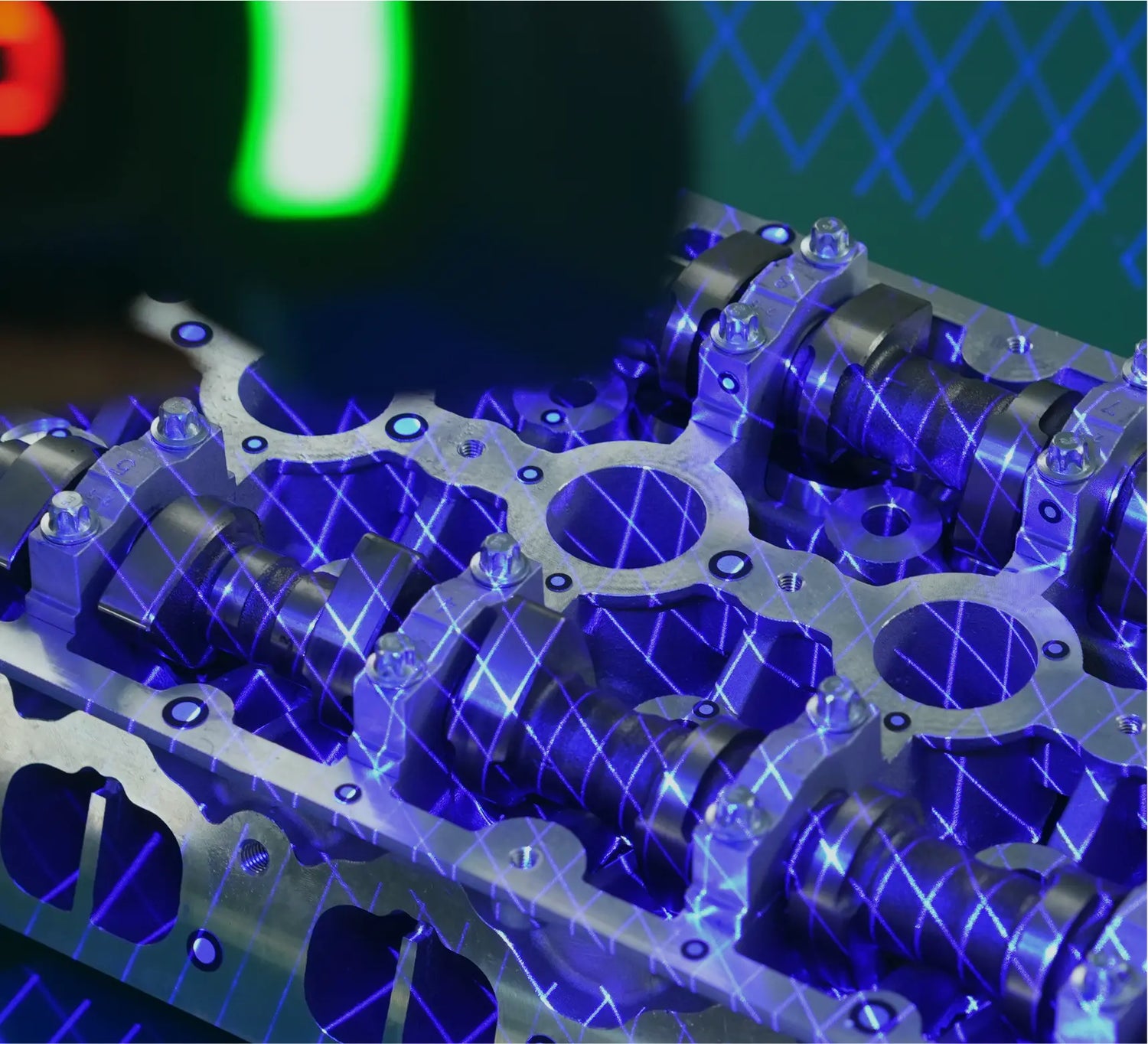

ISO Certified and Guaranteed Results
With a volumetric accuracy of up to 0.02 mm + 0.015 mm/m using photogrammetry, the FreeScan
UE Pro2 delivers consistent and reliable global accuracy and scanning results.
SHINING 3D's Accuracy Laboratory, accredited by CNAS in accordance with ISO 17025, ensures rigorous calibration of optical metrology. Based on VDI/VDE 2634 guidelines, the laboratory guarantees the traceability of measurement processes and calibration results.

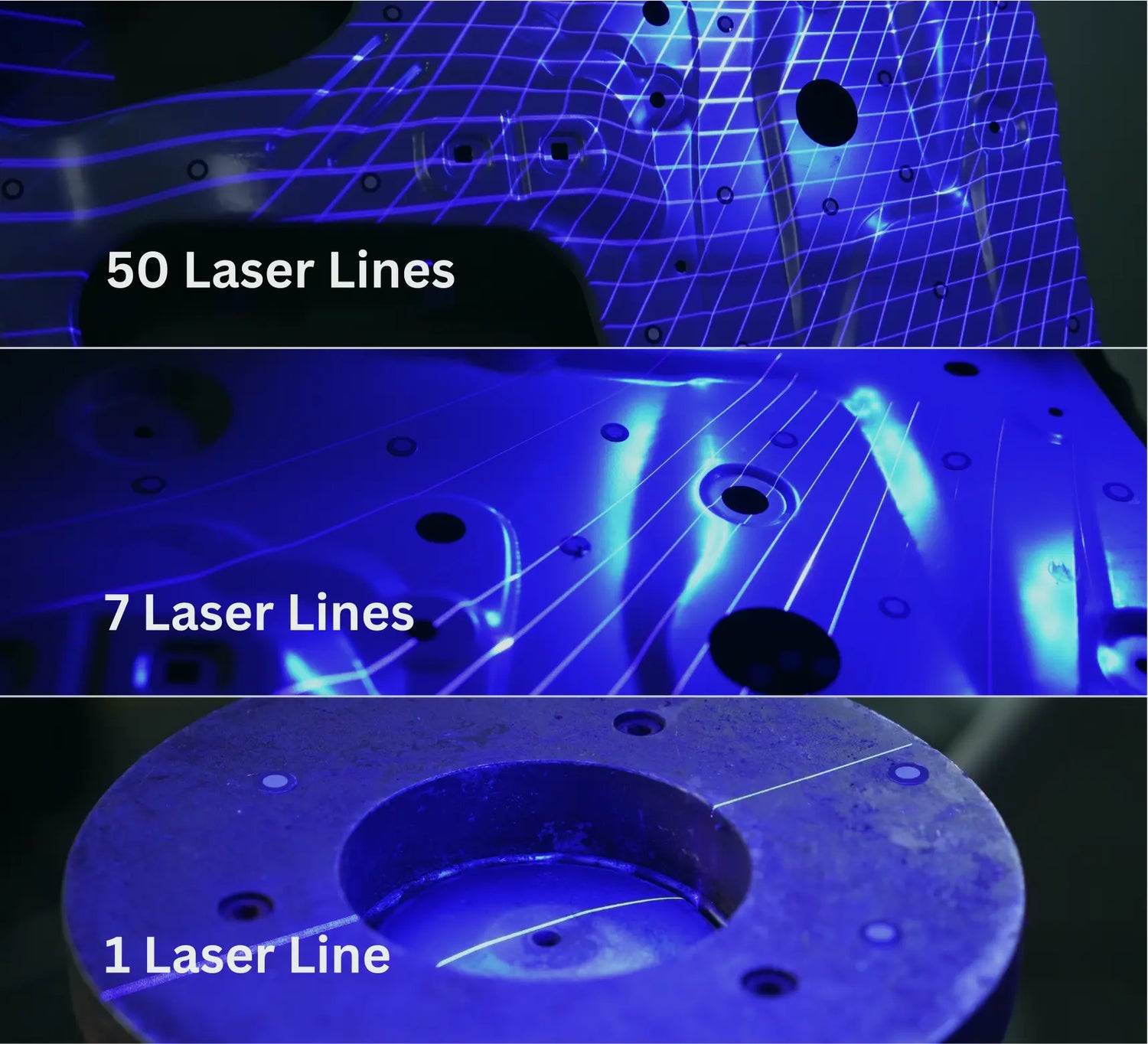

50 | 7 | 1 Laser Line Modes for Versatility
- 50 laser lines (vs 26 in previous generation) and 600x550 mm FOV for fast 3D scanning with 0.02 mm accuracy + 0.03 mm/m volumetric accuracy
- 7 laser lines for detail scanning around sharp corners and features
- 1 laser line for scanning deep pockets and holes

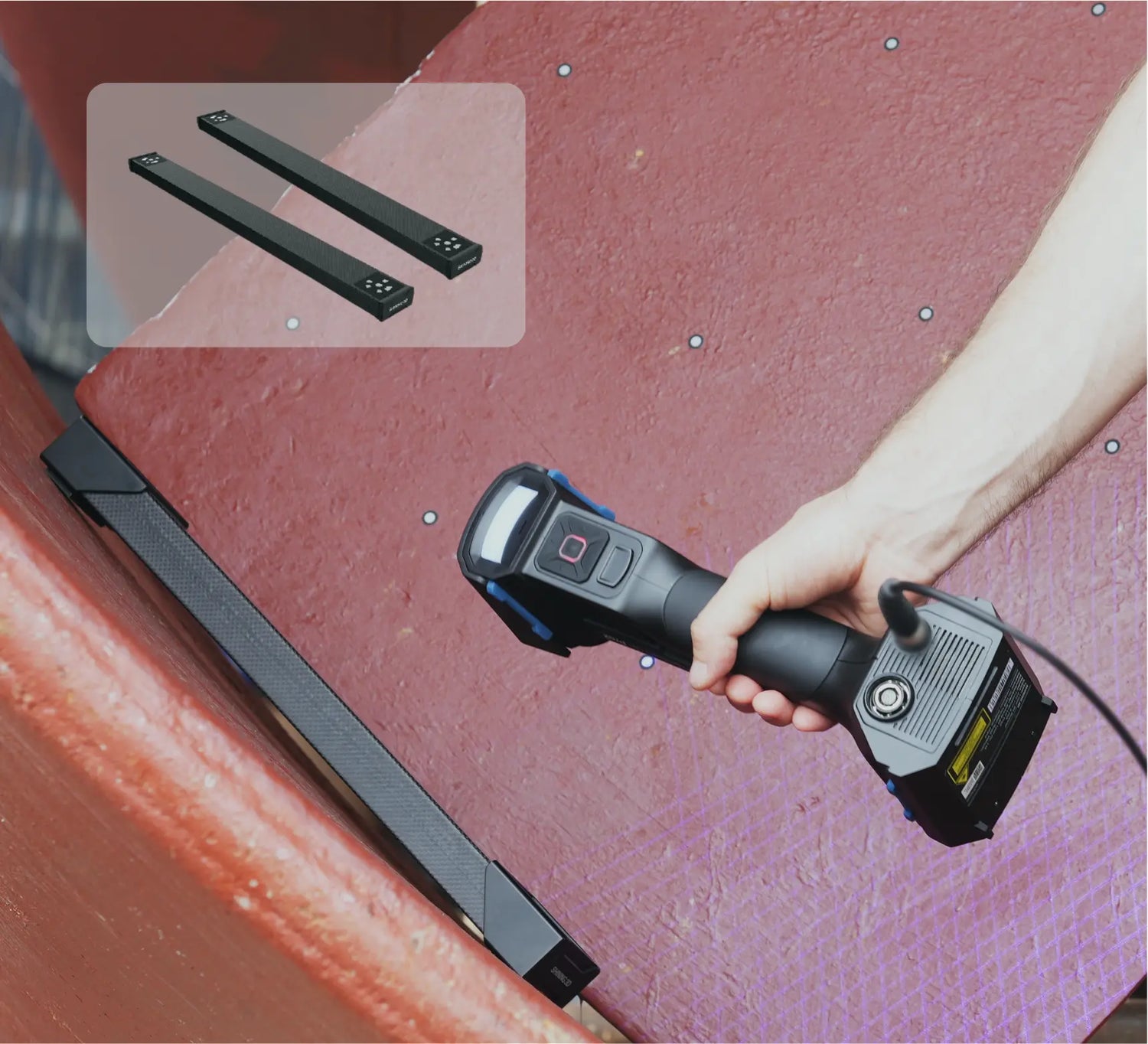

Video Photogrammetry (VPG)
FreeScan UE Pro2 features SHINING 3D’s patented video photogrammetry (VPG), which eliminates
the need for coded markers. This ensures consistent volumetric accuracy down to 0.02mm + 0.015mm/m with any laser scan mode and streamlines the setup process for efficient large-object scanning.

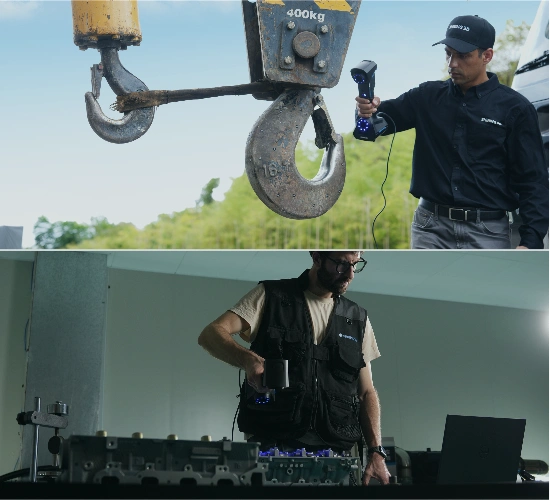

Scan Indoors and Outdoors
The FreeScan UE Pro2 is easy-to-use and generates highly accurate and repeatable results, performing exceptionally well even in tough environments and on complex surfaces.
FreeScan UE Pro2
FreeScan UE Pro2 EXModel Bundle
FreeScan UE Pro2 Geomagic Control X Bundle
3D Scan Models
Why Choose FreeScan UE Pro2?
Technical Specifications - FreeScan UE Pro2
| Product Model | FreeScan UE Pro2 | ||
|---|---|---|---|
| Scan Mode | Multiple Lines Scan | Fine Scan | Single Line Scan |
| Light Source | 50 laser lines | 7 parallel laser lines | 1 laser line |
| Working Distance | 300 mm | 200 mm | 300 mm |
| Scan Accuracy | 0.02 mm | ||
| Volumetric Accuracy | 0.02 + 0.03 mm/m (0.02 + 0.015 mm/m with photogrammetry) | ||
| Scan Speed | Up to 3,460,000 points/s | ||
| Scan Depth | 360 mm | ||
| Max. FOV | 600 x 550 mm | ||
| Point Distance | 0.01 ~ 10 mm | ||
| Laser Class | Class II (eye safe) | ||
| Connection Standard | USB 3.0 | ||
| Dimension | 305.8 x 118.9 x 100.8 mm | ||
| Weight | 0.95 kg | ||
| Power Input | 24V, 3.75A | ||
| Working Temperature | -20 ~ 40℃ | ||
| Working Humidity | 10 ~ 90% | ||
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX | ||
| Accuracy Certification | VDI/VDE 2634 Part3 (certified in ISO 17025 certified accuracy lab) | ||
| Recommended Computer Configuration |
OS: Windows 11 Professional 22H2 (64-bit) Processor: 13th Gen Intel® Core™ i7-13700H or above Graphics Card: NVIDIA GeForce RTX 4060 Laptop GPU or above Video Memory: 8G or above RAM: 64G or above, DDR5 dual-channel Interface: USB 3.0 |
||
| *Based on VDI/VDE 2634 part3. Sphere-spacing error is assessed with traceable length artefacts and markers by measuring these at different locations and orientations within the working volume, in the accuracy lab with environment conditions: temperature 20 ± 0.5℃; humidity 40 ~ 60% RH. | |||
Resources – Tutorials & Applications
-

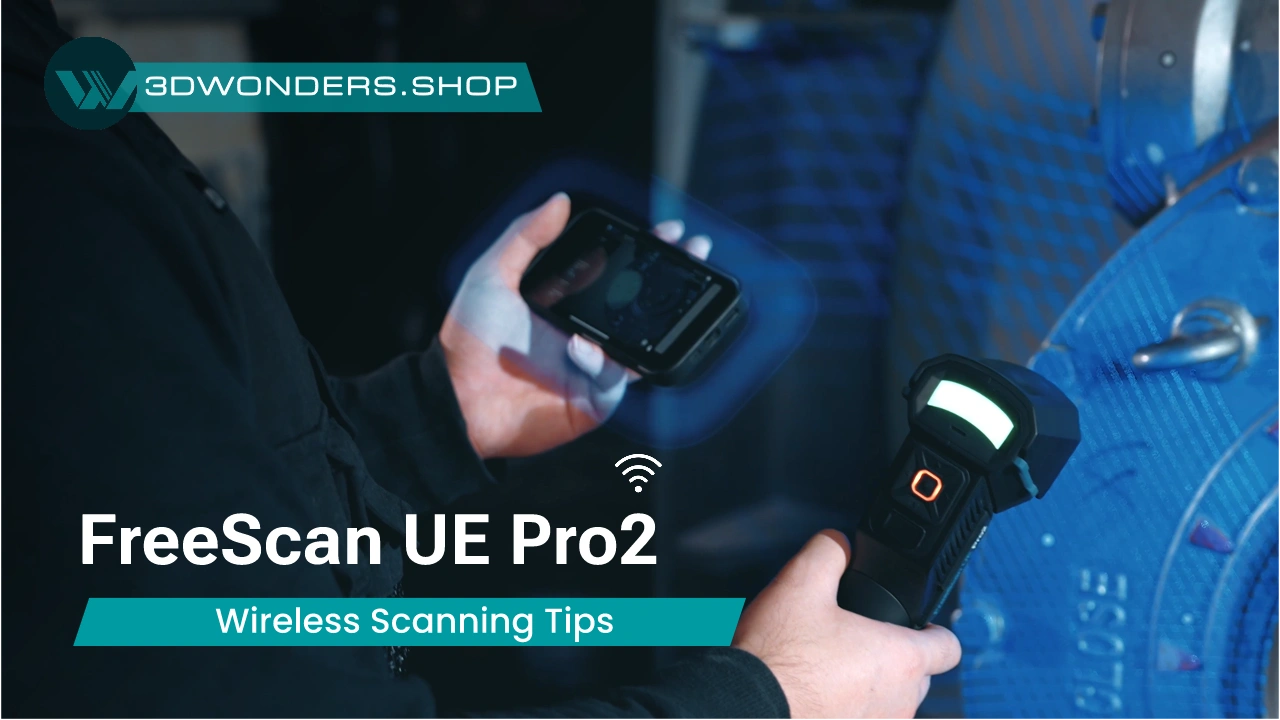

Wireless Scanning Tips with Freescan UE Pro2
In this video, we share useful tips on how to maximize the wireless features of the Freescan UE Pro 2.
-

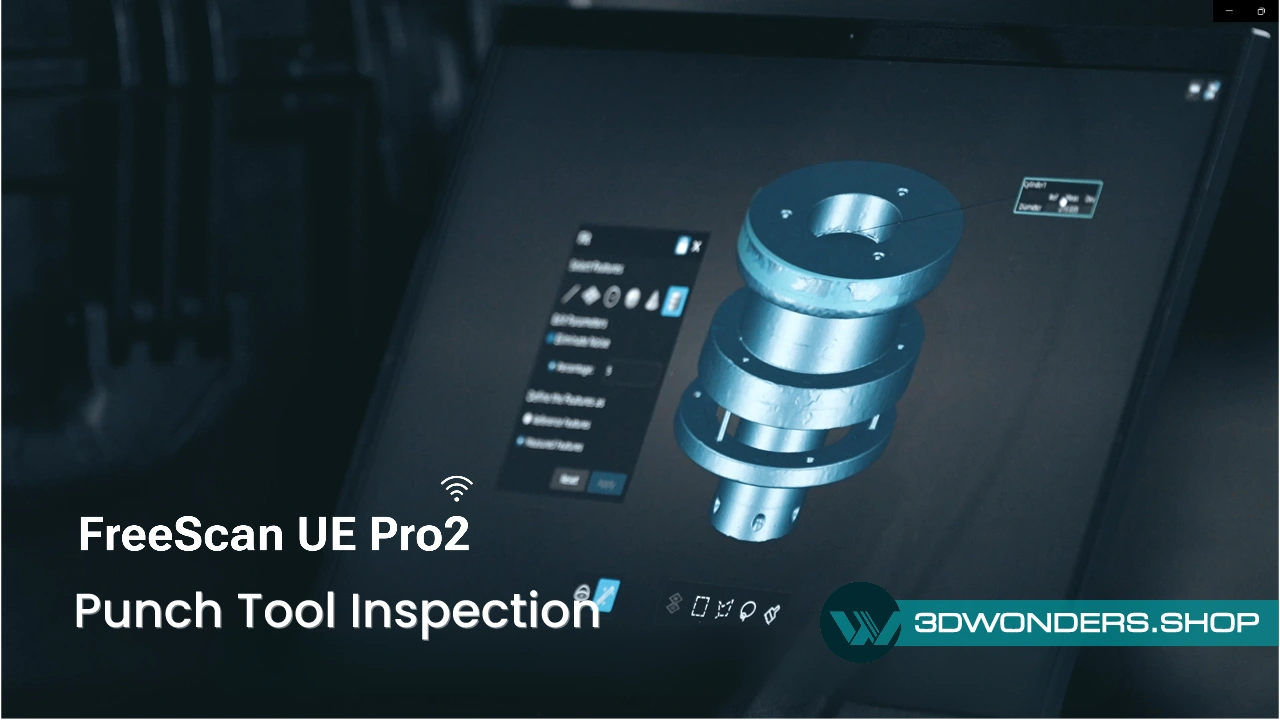

Freescan UE Pro2 - Punch Tool Inspection In Automotve Factory
With unmatched accuracy, wireless flexibility, and an integrated inspection module, the FreeScan UE Pro2 is the ultimate solution for detailed inspections.
-

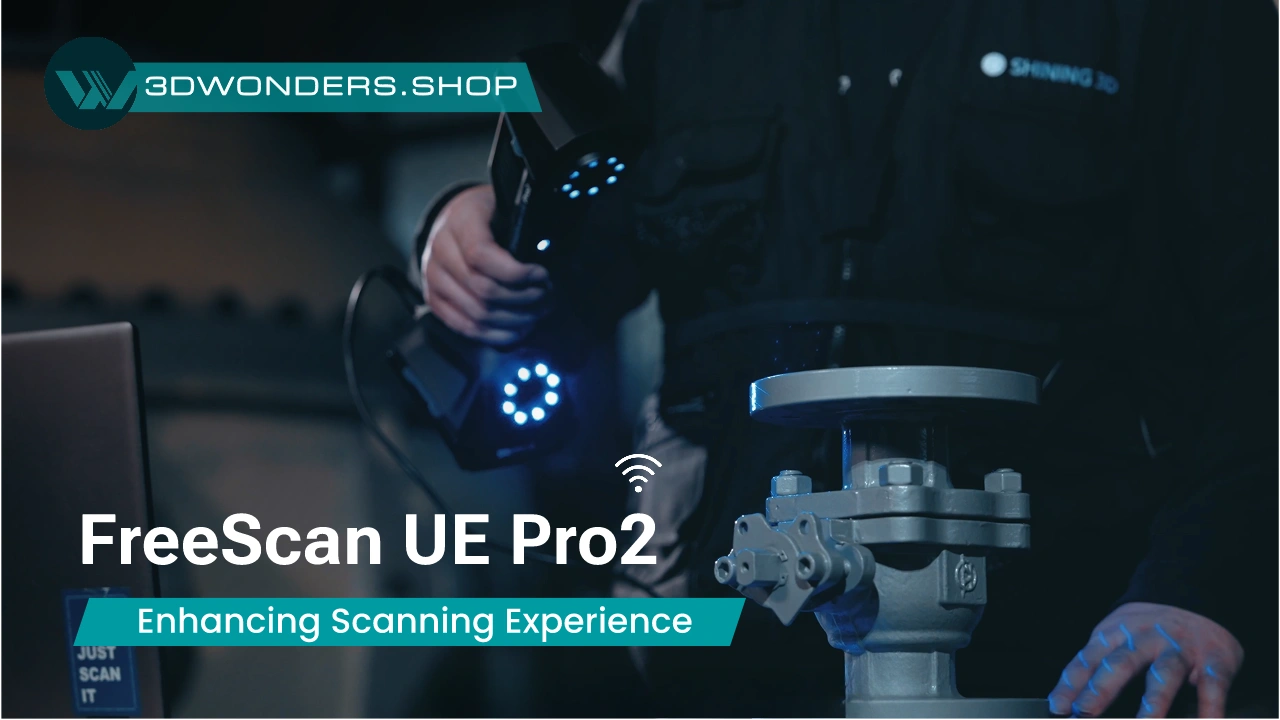

Enhancing Your Scanning Experience with FreeScan UE Pro2
In this video, we show how using tools like turntables and marker dies can simplify and improve your scanning process with the Freescan UE Pro 2.
-
Our Company
Delivering top-tier 3D scanners, printers, and training to optimize your business with precision and efficiency.
-
Who We Are
A dedicated team of 3D scanning and printing experts, providing reliable service and fast support.
-
Customer Benefits
We value your time and make adopting new technology easy with unlimited after-sales support and free shipping.
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
It is recommended to use photogrammetry mode for objects larger than 1.5 meters to get better measurement results.
The wireless mode of FreeScan UE Pro2 does require a router and cannot be directly connected to a computer via wireless connection.
In an environment without channel interference, the maximum distance that can be reached is 35 meters.
