FreeScan UE Nova

Wireless Metrology 3D Scanner for Greater Reach

Get a Free Demo

Wireless Metrology 3D Scanner for Greater Reach

FreeScan UE Nova sets a new standard in 3D scanning with its unmatched field of view, enabling highly efficient capture of large objects and significantly enhancing portability, productivity, and versatility.

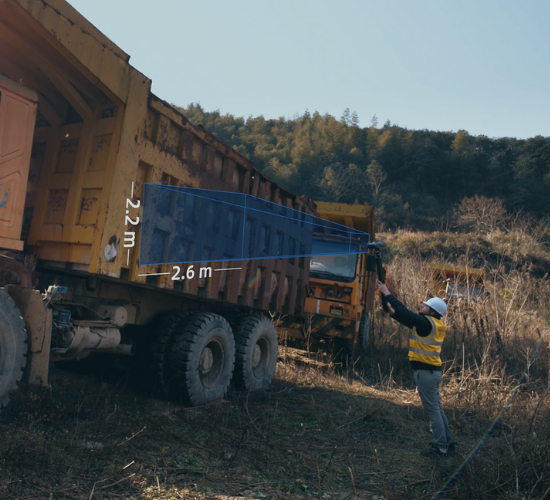

Expansive and Rapid Laser Scanning

FreeScan UE Nova offers expansive coverage, delivering unparalleled efficiency and flexibility.

  • Large-scale scanning coverage: FOV of 2.6 × 2.2 m
  • Maximum scanning distance of 2.6 m

50 Laser Lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.

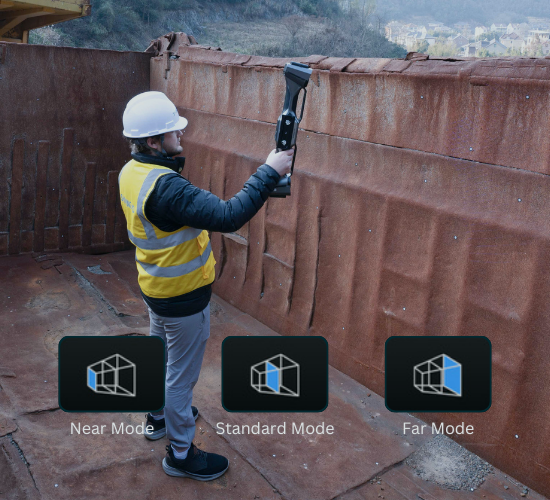

Flexible FOV

FreeScan UE Nova offers the flexible field of view depending on three selectable working range, adapt to different on-site operation conditions.

  • Near Mode (300 ~ 800 mm): For detailed work in tight spaces, allowing to capture intricate precise details.
  • Standard Mode (600 ~ 1500 mm): For general-purpose scanning tasks, offering a balanced range for both speed and details performance.
  • Far Mode (1200 ~2600 mm): For very large-scale objects, enabling you to cover expansive areas quickly.

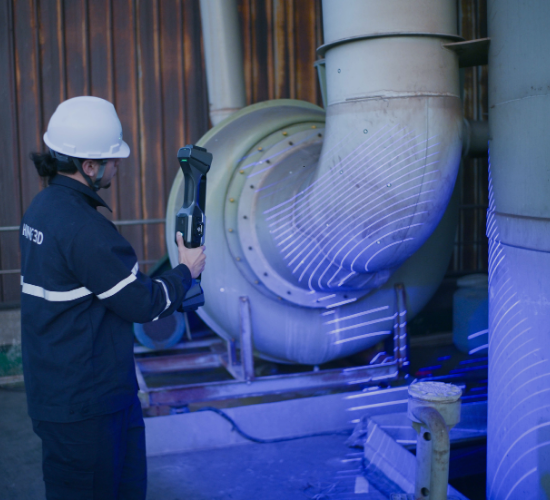

Free to Scan, Built to Perform

  • Integrated Wireless Modules: ensure real-time data transmission with high frame rates and stability.
  • Swappable Batteries: features detachable and hot-swappable batteries for continuous scanning during long-time projects or in remote locations.
  • Built-In Computing Modules: enable rapid and efficient processing. These onboard capabilities ensure fast, reliable results on the go.

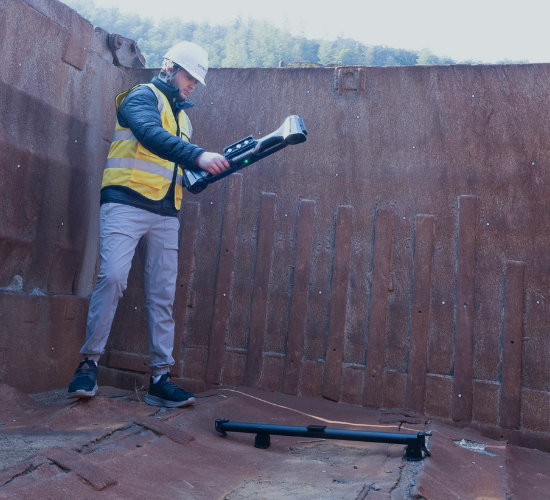

Video Photogrammetry (VPG)

Utilizing SHINING 3D’s patented video-based photogrammetry (VPG) without coded markers, it integrates with a calibration rod for real-time marker verification, delivering volumetric accuracy of 0.072  + 0.012 mm/mfor more efficient and reliable data acquisition.

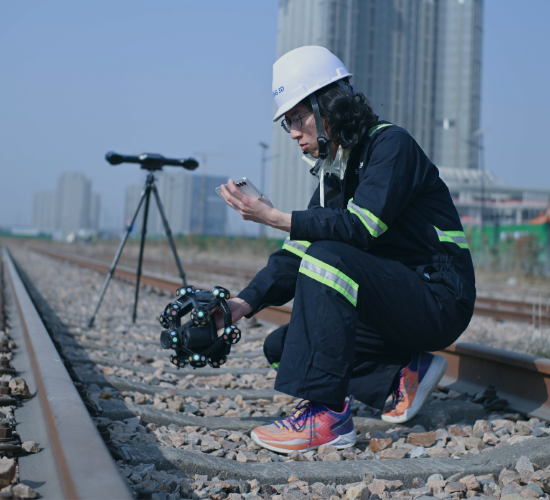

Expand Possibilities with Trak Nova

Elevate your capabilities and tackle even the most complex work environments with FreeScan Trak Nova. Click below to discover more!

  • Dynamic tracking
  • Marker-free scanning
FreeScan Trak Nova

FreeScan UE Nova

FreeScan UE Nova EXModel Bundle

FreeScan UE Nova Geomagic Control X Bundle

Product added to cart!
  • Hands-On with FreeScan UE Nova

    • Experience seamless 3D scanning
    • Understand its full capabilities
    • Get expert guidance, anytime, anywhere
    Get a Free Demo
  • Got a question?

    • When should I calibrate the 3D scanner?
    • Can FreeScan UE Nova scan black or reflective objects?
    • Is FreeScan UE Nova suitable for body scanning?
    Get an Answer
1 of 2

3D Scan Models

Why Choose FreeScan UE Nova?

  • Expansive field of view and 50 laser lines ensure fast and efficient data capture.
  • Three selectable working ranges provide flexibility for both detailed and large-scale scanning.
  • Integrated wireless modules and hot-swappable batteries enable seamless scanning anywhere.
  • Video Photogrammetry (VPG) ensures high volumetric accuracy without the need for coded markers.

Technical Specifications - FreeScan UE Nova

Specification FreeScan UE Nova
Volumetric Accuracy with VPG 0.072 + 0.012 mm/m
Flexible FOV Up to 2600 x 2200 mm
VPG Included (no coded markers required)
FOV Indicator of VPG Included
High-Speed Scan Included
Detailed Scan Included (support near mode)
Depth of Field 2300 mm (300 ~ 2600 mm)
Connection Wireless & Wired mode (fiber optic)
Net Weight 1.6 kg
Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
Acceptance Test VDl/VDE 2634 Part3 (certified in ISO 17025 certified accuracy lab)

Resources – Tutorials & Applications

1 of 3
  • Our Company

    Delivering top-tier 3D scanners, printers, and training to optimize your business with precision and efficiency.

  • Who We Are

    A dedicated team of 3D scanning and printing experts, providing reliable service and fast support.

  • Customer Benefits

    We value your time and make adopting new technology easy with unlimited after-sales support and free shipping.

1 of 3

Frequently Asked Questions

Looking for something specific? Let us know, and we’ll be happy to assist you.

Can UE Nova be used in confined spaces despite its wide field of view?

Yes, although UE Nova has a maximum data capture range of 2.6 meters, the software offers three selectable working ranges to adapt to different environments: Near (300 ~ 800 mm), Standard (600 ~ 1500 mm), and Far (1200 ~ 2600 mm). This flexibility allows it to function effectively in narrow spaces.

What is the maximum size of an object that the UE Nova can handle?

The maximum object size that UE Nova can scan depends on your PC’s performance. To accommodate larger measurements, multiple projects can be set up and merged, effectively extending the scanning capability.

Is there a difference in scanning speed between wired and wireless modes?

Both wired and wireless modes have equivalent data transmission bandwidth under full operating conditions, ensuring consistent scanning speed in both modes.

Can the UE Nova be used for outdoor scanning?

The UE Nova is designed for outdoor scanning and comes with lens filters to enhance its performance in outdoor environments.
