FreeScan Trak Nova

Wireless Multi-Functional Dynamic Tracking & Scanning System

Get a Free Demo

Wireless Multi-Functional Dynamic Tracking & Scanning System

The Freescan Trak Nova is a wireless and dynamic 3D scanning system consisting of 2 scanners, which can work in unison or work separately to handle different parts. From construction machinery to rail transit, civil aviation to energy, FreeScan Trak Nova is built to meet the diverse needs of industries requiring accurate and efficient large-scale measurements with extreme portability, productivity and versatility.

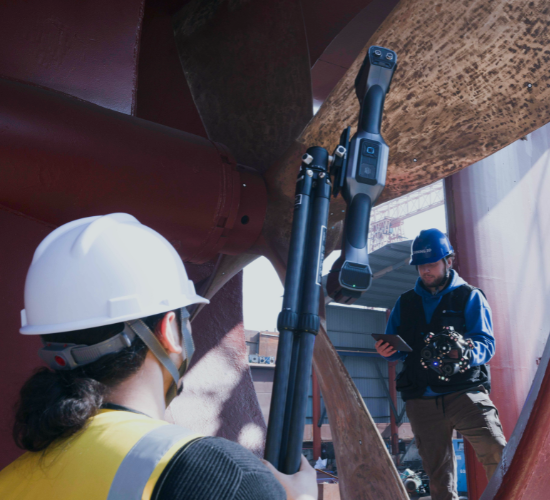

Dynamic Tracking Scan: Compact and Agile

The real-time tracking technology allows for the capture of fine details. With its wireless and compact design, the system excels in scanning confined spaces, ensuring efficient and precise measurements.

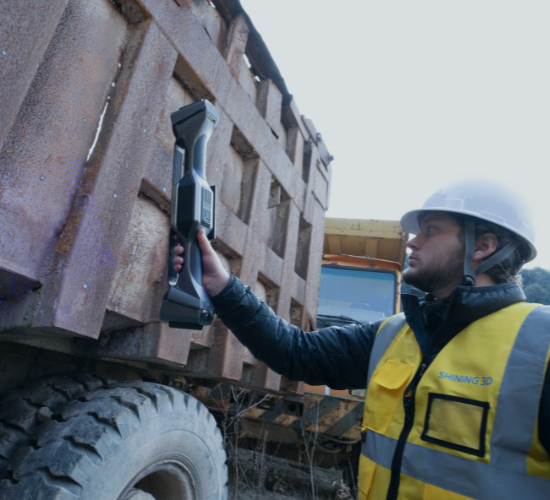

Flexible & Separable System

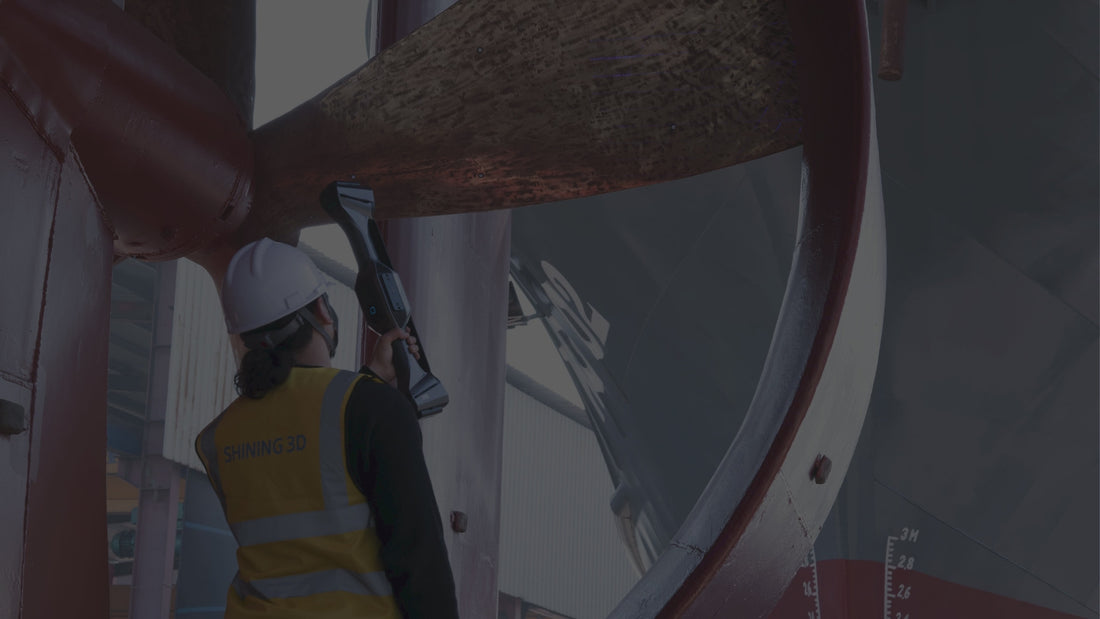

FreeScan Trak Nova includes a detachable handheld scanner. The tracker, FreeScan UE Nova, also serves as a handheld laser scanner with the largest FOV on the market, delivering unparalleled efficiency and flexibility.

  • Large-scale scanning coverage with 2.6 × 2.2 m FOV
  • Ultra fast scan speed
  • Certified and guaranteed accuracy

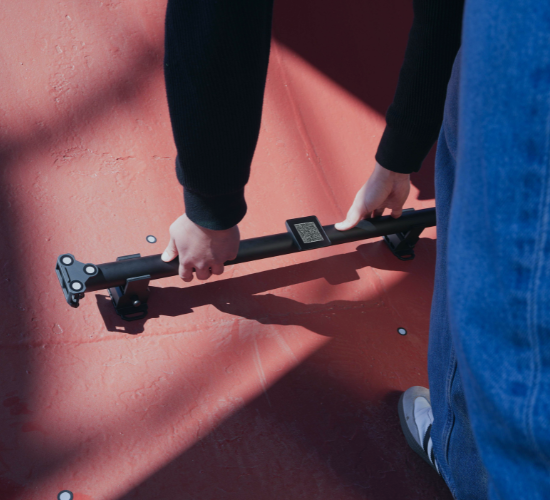

Video Photogrammetry (VPG)

FreeScan Trak Nova system features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

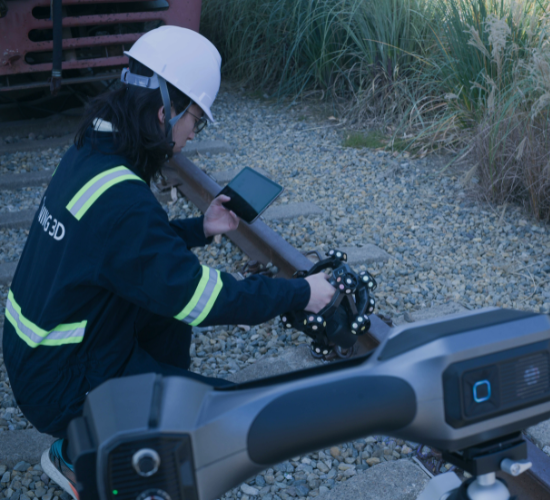

Free to Scan, Built to Perform

Integrated wireless modules: Achieve greater freedom when scanning large objects or in tight spaces, without the limitations of cables or external devices. This seamless integration allows for real-time transmission of scan data, ensuring high frame rates and stable data transfer.

Built-in computing modules: With advanced computing modules, both the tracking scanner and wide-range scanner ensure rapid and efficient processing.

Small in Form, Big on Performance

Everything you need is neatly packed in one portable case, with a lightweight carbon fiber structure that ensures stability and reliable performance in any environment.

  • TE Nova: 1.2 kg
  • UE Nova: 1.6 kg

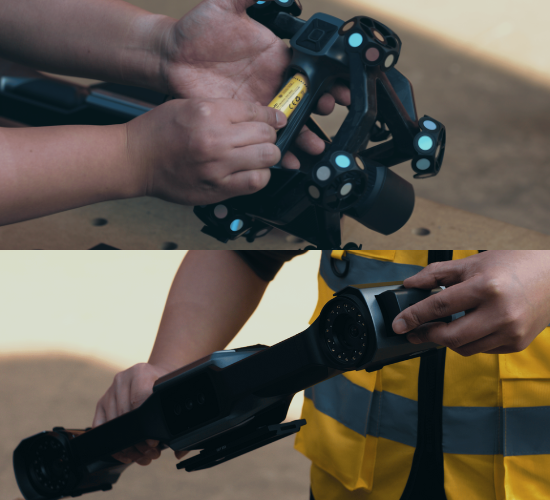

Hot Swap Batteries for Continuous Scanning

For maximum convenience, FreeScan Trak Nova features detachable batteries for extended scanning time. Easily swap out batteries to keep your workflow uninterrupted, even during long projects or in remote locations.

FreeScan Trak Nova

FreeScan Trak Nova EXModel Bundle

Freescan Trak Nova Geomagic Control X Bundle

Product added to cart!
  • Hands-On with FreeScan Trak Nova

    • Experience seamless 3D scanning
    • Understand its full capabilities
    • Get expert guidance, anytime, anywhere
    Get a Free Demo
  • Got a question?

    • When should I calibrate the 3D scanner?
    • Can FreeScan Trak Nova scan black or reflective objects?
    • Is FreeScan Trak Nova suitable for body scanning?
    Get an Answer
1 of 2

3D Scan Models

Why Choose FreeScan Trak Nova?

  • Wireless and Dynamic Scanning – Achieve complete freedom with real-time tracking and no need for cables or external devices.
  • Versatile and Efficient – Works as a dual-scanner system or separately, providing flexibility for different scanning needs.
  • Large-Scale and Precise Measurements – Captures fine details with high accuracy, ideal for industrial applications.
  • Seamless Workflow – Hot-swappable batteries and built-in computing modules ensure continuous, uninterrupted scanning.

Technical Specifications - FreeScan Trak Nova

FreeScan Trak Nova FreeScan UE Nova
Volumetric Accuracy 0.062 mm (12m³) /
Volumetric Accuracy with VPG 0.046 + 0.012 mm/m (extension volume) 0.072 + 0.012 mm/m
Flexible FOV Up to 2600 x 2200 mm
VPG Included (no coded markers required)
FOV Indicator of VPG Included
High-Speed Scan Included (50 laser lines) Included
Detailed Scan Included (7 parallel laser lines) Included (support near mode)
Deep Pockets Scan Included (1 laser line) /
Depth of Field TE Nova: 380 mm (170 ~ 550 mm)
UE Nova: 2700 mm (800 ~ 3500 mm)
2300 mm (300 ~ 2600 mm)
Connection Wireless & Wired mode (fiber optic)
Net Weight TE Nova: 1.2 kg / UE Nova: 1.6 kg
Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
Acceptance Test VDl/VDE 2634 Part3 (certified in ISO 17025 certified accuracy lab)

Resources – Tutorials & Applications

1 of 3
  • Our Company

    Delivering top-tier 3D scanners, printers, and training to optimize your business with precision and efficiency.

  • Who We Are

    A dedicated team of 3D scanning and printing experts, providing reliable service and fast support.

  • Customer Benefits

    We value your time and make adopting new technology easy with unlimited after-sales support and free shipping.

1 of 3

Frequently Asked Questions

Looking for something specific? Let us know, and we’ll be happy to assist you.

How can I enhance the level of detail in a scan data?

Since the FreeScan Trak Nova features two scanning sensors, you can first perform a large-area scan with UE Nova and then refine specific areas by switching to TE Nova for higher-resolution scanning. If using only TE Nova, the software offers Partial HD scanning, allowing resolution enhancement for intricate regions.

What are the advantages of FreeScan Trak Nova?

FreeScan Trak Nova provides an optimal solution for small businesses or individual users who require high-quality scanning without the need for marker registration. Its tracking volume is well-suited for single-room setups. Additionally, it supports UE Nova for large-scale scanning, enabling efficient measurement of extensive parts.

What is the battery life in wireless mode?

In wireless mode, TE Nova can operate for up to 2.5 hours, while UE Nova lasts approximately 1 hour. Both devices use standard swappable batteries, enabling continuous scanning without interruptions.

How can accuracy be improved when scanning large parts?

The system utilizes SHINING 3D’s patented video-based photogrammetry technology to enhance overall accuracy. UE Nova supports a maximum photogrammetry working distance of 3.5 meters, enabling efficient capture and generation of global marker files for improved precision.

Is a router required for wireless mode? Can the system connect directly to a computer via a wireless connection?

A Wi-Fi router is necessary for operating the system in wireless mode. SHINING 3D includes a router in the package, but if you prefer to use your own, we recommend a Wi-Fi 6 router for optimal performance.

How often should the system be calibrated?

It is recommended to calibrate the system every two weeks. Additionally, if there are changes in operating temperature, location, or other environmental factors, calibration should be performed before scanning to ensure optimal accuracy.
