Technical Specifications
Technical Specifications
Accuracy: Up to 0.02 mm
Point Distance: 0.01 ~ 3 millimeters
Recommended Object Size: 1 in3/ 25 mm3 to about 26 ft3/ 8 m3
Light Source: Blue Laser + Infrared VCSEL
Scan Speed: 1,860,000 points/s
Computer Requirements
Computer Requirements
- Intel i7 or i9 CPU / Ultra Cards will not work
- Nvidia RTX 1060 series or higher graphics card (Intel Integrated or AMD cards will NOT WORK with this scanner)
- 6 GB VRAM and 64 GB RAM recommended
- USB 3.0 connection
Supported OS: Windows 10, 11 (64bit)
Package Includes
Package Includes
Freescan Combo 3D Scanner
Freescan Pro Scan Software
Calibration Board Kit
USB Cable (Scanner to PC)
Power Supply
8 GB USB
3160pc Reflective Marker pack
Rugged Carrying Case
Package Dimensions
Package Dimensions
Dimensions:193 x 63 x 53 3m [7.6 x 2.4 x 2 in]
Shipping Weight:4.9 kg [10.78 lb]
Weight:620 g [1.3 lb]
Shipping & Returns
Shipping & Returns
Free Express shipping 2-3 business days
Priority shipping 1-2 business days at a charge
30-Day Return policy - please refer to Return & Exchange policy for details
Warranty Options
Warranty Options
A standard 1-year warranty from the date of purchase is included to cover repairs of scanner failure due to manufacturing defects with a target completion of 21 to 30 days. If the product is found to be defective within 30 days of arrival, then it will be replaced with a new unit.
Extended warranty is available for purchase, please contact us for a quote.
Misuse, abuse, wear and tear, environmental or natural disasters, and other unwarranted
damages are not covered by any warranty plan.
High-Precision, Metrology-Grade 3D Scanner
The FreeScan Combo is a metrology-grade handheld 3D scanner that combines blue laser and infrared VCSEL technologies to deliver high-accuracy and submillimeter resolution scanning. It is designed for industrial inspection, quality control, and reverse engineering, supporting object sizes from 25 mm³ (1 in³) to 8 m³ (26 ft³).

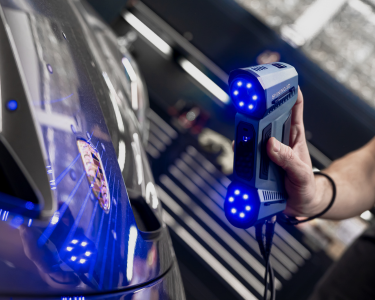

Hybrid Scanning Technology
- Blue Laser: Delivers superior accuracy, effectively capturing data from dark, reflective, or intricate surfaces.
- Infrared VCSEL: Facilitates marker-free scanning, enhancing speed and flexibility in data acquisition.

Versatile Scanning Modes
- Multi-Line Mode: Employs 26 (Combo) or 50 (Combo+) laser lines for overall scans.
- Fine Detail Mode: Utilizes 7 parallel laser lines to capture intricate details.
- Deep Hole Mode: Uses a single laser line to scan narrow spaces.
- Infrared Mode: Offers rapid, marker-free scanning, ideal for feature-rich parts.

Metrology-Grade Accuracy
Achieves industrial-level accuracy of 0.02 mm, making it suitable for precision measurement applications in sectors such as automotive, aerospace, and manufacturing.

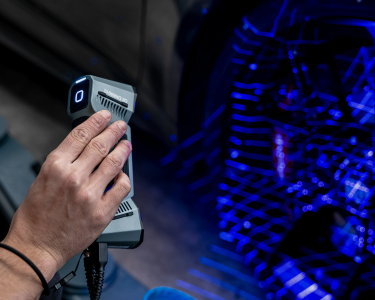

Fast Scanning & Wide Coverage
- FreeScan Combo: Captures up to 1,860,000 points per second using 26 laser lines, ensuring efficient scanning for detailed inspection.
- FreeScan Combo Plus: Delivers an enhanced speed of 3,600,000 points per second with 50 laser lines, optimizing productivity for large-scale applications.
- Both models offer a maximum field of view (FOV) of 520 × 510 mm, allowing for fast and comprehensive data acquisition.

Ergonomic & Compact Design
- Weighing only 620 grams and measuring 193 × 63 × 53 mm, its lightweight and ergonomic design reduces user fatigue during extended scanning sessions.
- The optimized camera angle improves usability in tight or complex environments, allowing for swift data capture in seams.

Marker-Free Infrared Scanning
The infrared VCSEL scanning mode simplifies the scanning process by eliminating the need for markers. This mode is ideal for capturing complex, feature-rich surfaces quickly and efficiently, making it perfect for scanning medium to large objects with minimal setup time.
-
Hands-On with FreeScan Combo
Book a Demo- Experience seamless 3D scanning
- Understand its full capabilities
- Get expert guidance, anytime, anywhere
-
Got a question?
Get an Answer- When should I calibrate the 3D scanner?
- Can FreeScan Combo scan black or reflective objects?
- Is FreeScan Combo suitable for body scanning?
3D Scan Models
Download 3D Scan Files
Get hands-on with our 3D scan data. Download sample files to test compatibility, analyze details, and experience the quality of our scanning solutions.
-
FreeScan Combo
High precision hybrid 3D scanning with blue laser and infrared VCSEL technology, delivering metrology grade accuracy for industrial inspection, quality control, and reverse engineering.Regular price $16,999.00 USDRegular priceUnit price / per -
FreeScan Combo EXModel Bundle
Regular price $21,299.00 USDRegular priceUnit price / per -
FreeScan Combo Plus
High precision hybrid 3D scanning with blue laser and infrared VCSEL technology, delivering metrology grade accuracy for industrial inspection, quality control, and reverse engineering.Regular price $18,999.00 USDRegular priceUnit price / per -
FreeScan Combo Plus EXModel Bundle
Regular price $23,299.00 USDRegular priceUnit price / per
Why Choose FreeScan Combo?
- Delivers high-resolution, metrology-grade accuracy for inspection and reverse engineering tasks.
- Offers versatile scanning modes to handle various object types and surface conditions.
- Ensures a fast and efficient workflow, enhancing productivity.
- Designed for portability and ease of use, making it a reliable tool for professionals across diverse industries.
Resources – Tutorials & Applications
-
FreeScan Combo | Scanning a Turbine Disk
Watch as the FreeScan Combo scans a turbine disk with 26 laser lines. This efficient 3D scanner delivers exceptional accuracy and speed.
-
How to Calibrate FreeScan Combo
In this salon, we will show you how to calibrate FreeScan Combo with the small calibration plate.
-
Freescan Combo | Markerless Scanning
Check out this video how FreeScan Combo captures 3D data of a Mercedes-Bens in blue laser and infrared VCSEL scanning mode.
